The industrial electric wood chipper is part of the coarse crushing equipment. It can be used to crush large chunks of wood or segments of round wood.
The wood crusher can process a variety of raw materials such as small-diameter timber, logs, construction templates, and so on. It can also be controlled remotely or coupled with the feed from a coupling ding stop function. After the main motor’s load increases, the feed can automatically begin and stop. This saves manpower.
- Application Materials: The Whole Tree, Wood pallet, different boards, logs, and residues (such as branches, slabs, slats, waste veneer, wood skins, waste wood, etc.)
- Power: 110kw-315kw | Capacity: 15-40t/h
The wood crusher’s feeding and crushing are done simultaneously. This allows for a more even crushing of the final material. It is suitable for use in the bamboo glue board processing industry as well as the wood panel factory and biomass power plant.
Motors or diesel engines can be used to drive the wood crusher. To facilitate transportation of the wood to the pressure roller, the machine uses chain plate intelligent feeding and claw machines loading. The wood is then cut into wood chips using the cutting rotor blades.
Parameters of Industrial Wood Chipper
| Model | GY-W1000-01 | GY-W1000-02 | GY-W1300-01 | GY-W1300-02 | GY-W1500-02 |
| Motor Power | 4-110KW | 4-110KW | 4-132KW | 4-132KW | 4-315KW |
| Feed Motor Power | 4-7.5KW×2 | 4-7.5KW×2 | 4-7.5KW×2 | 4-7.5KW×2 | 4-18.5KW/4-11KW |
| Feeding bin size | 1000×400mm | 1000×400mm | 1300×400mm | 1300×400mm | 1500×550mm |
| Feed Model | Blet type*4m | Chain slat typ *4m | Blet type*4m | Chain slat type*4m | Chain slat type*4m |
| Thickness of moving blade | 60mm | 60mm | 20mm | 20mm | 20mm |
| Moving Blade Number | 26 | 26 | 32 | 32 | 15 |
| Spindle Speed | 510(r/min) | 510(r/min) | 870(r/min) | 870(r/min) | 285(r/min) |
| Blade Roll Diameter | Φ1m | Φ1m | Φ1m | Φ1m | Φ1m |
| Particle Size | 30-35mm | 30-35mm | Controlled by screen | Controlled by screen | Controlled by screen |
| Capacity | 20T/hour | 20T/hour | 25-30T/hour | 25-30T/hour | 30-35T/hour |
| Weight | 12.8 Tons | 12.8 Tons | 14.8 Tons | 14.8 Tons | 16.8Tons |
| Overall dimensions(mm) | 6000*2150*2350 | 6000*2150*2350 | 6000*2800*2500 | 6000*2800*2500 | 6000*2950*1950 |
Related Machine For Sale
The working principle of the integrated wood chipper
The integrated crusher’s front section uses a chain plate conveying system. As long as the raw material is placed into the conveyor belt, the conveyor belt will transport it to the feeding roller. After that, the feeding roller crushes and sends it to its crushing chamber. The motor or diesel engine drives the rotor and it rotates at high speed. After that, the material is delivered to the crushing chamber via the feed rollers. The rotor then tells the rotor to cut and tear it.
To complete its material breaking operation, the integrated crusher relies on impact energy. The motor drives the rotor at high speed, allowing the wood to enter the integrated crushing chamber. The wood is crushed by the rotating hammerhead at high speed. The screen plate is hammered and ground to remove any wood resistance greater than the screen hole.

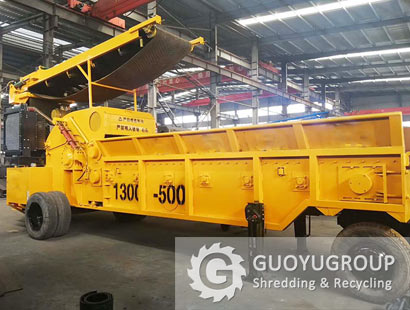

Frame assembly, main equipment and power system are the major components of the mobile wood comprehensive crusher. This device is an integral installation group machine. It can be used to eliminate complicated site infrastructure operation of certain parts and can also unfold simultaneously with the raw materials land or construction site.
Features of large industrial wood chipper
- Large wood crushers can crush large volumes of wood with nails. They can also crush furniture and doors. The grasper can be used to feed the material, and the high level of automation allows the material to be directly grasped onto the conveyor platform for crushing. Only one person is required to operate the grasper.
- A large wood crusher can be used to crush the material to about 5 8 cm.
- The comprehensive crusher operation mode can be modified to wheel traction according to the user’s needs. It does not require complicated installation and can be placed directly on a flat ground. This ensures stable performance.
How can you increase the output of a wood chipper?
Wood chipper are a unique equipment that can be used to store biomass power plants’ fuel. They can crush large logs, small wood diameters, wood harvesting residues, and wood processing residuals. However, they can also be used for non-wood materials like hemp sticks, reeds or moso bamboo, corn stalks, firewood, etc. The following points can be used to improve the output of an integrated crusher.
1. Feed size strictly controlled
It is possible to cause the integrated crusher blockage or decrease the idle rate in order to ensure uniform feeding of the belt.
2. Selection of crushing material
It is easier to crush brittle materials than hard materials. Materials with lower fiber content are also easier to crush than materials with higher fiber content.
3. High quality blades available
In other circumstances, superior blades are more efficient and last longer. However, inferior blades can heat up, soften, and deform under continuous high-intensity work. This greatly reduces the integrated crusher’s crushing capacity.
4. Regular maintenance of equipment
Each operation should take at least 300 hours. Before the bearing internal injecting lubricating oils, clean the bearings. Next, clean the bearing seat interior finishing.
